Standard

Ledger

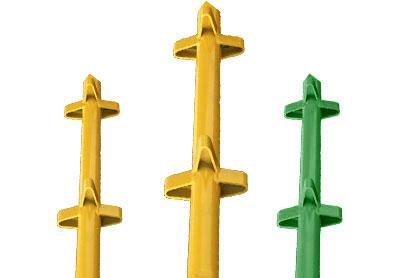

Australian/U.K type standards are made from 48.3mm O.D x 4.0mm thick tube (yield strength 240 MPa). It has welded 'V' pressings on the tube at interval of 495mm for locating ledgers/ transoms to provide firm grip to make the connection rigid. Round/square integral spigots are provided at the top of standards for making vertical connections

Length (Meter) 1.0
1.5
2.0
2.5
3.0

Weight (Kg) 6.3
9.3
11.6
14.8
17.2

We also make South African type standards using 48.3mm O.D x 3.2mm thick tube.

Ledgers are made from 48.3mm O.D x 3.2mm thick tube (yield strength 240 MPa). It is made from scaffold tube with wedge for locking ledger into 'V' of standard & has 'Banana Type' fixing at each end which fits in the 'V' locating lugs on the standard for horizontal alignment of ledger. Ledgers are fitted into upper 'V' of the standards

Length (Meter) 0.9
1.2
1.8
2.4

Weight (Kg) 3.7
5.5
7.0
8.7

We also make South African style ledger also with 'C' pressing at both the ends of tube.

Length (Meter) 0.9
1.219
1.295
1.5
2.0

Weight (Kg) 3.3
4.25
4.5
4.95
6.48

Diagonal brace

Transoms

Diagonal braces are made from 48.3mm O.D x 3.2mm thick tube with a swivel wedge arrangement at both the ends. They are placed diagonally from ledger to ledger for diagonal bracing of scaffolding structure to avoid twist in scaffolding structure. Wedge arrangement fits into outside 'V' of standards

Length (Meter) 2.7
3.5

Weight (Kg) 10.7
12.9

Transoms are made by welding 2 angles of 50x50x5mm back to back or using 'T' section with wedge fixing device at both the ends. It fits into the lower 'V' of standard transversely to provide support for 3 to 5 walk boards & toe board

Length (Meter) 0.8
1.2
1.8

Weight (Kg) 5.7
7.8
11.3

Return transoms

Hop up brackets

Return transoms are made using steel pressing shaped with wedge fixing arrangement at both the ends, fixed to the inner and outer standard and placed over the first ledger of an adjacent 90° bay so that it can be placed over a ledger to form a 90% return in the scaffold. Return transom has a seating on one side for walk board

Length (Meter) 1.8
2.4

Weight (Kg) 13.8
22.9

Hop up brackets are made by welding 2 angles back to back or using inverted 'T' section with wedge fixing device at both the ends. It is used to extend the scaffold structure by cantilevering for an additional 1, 2 or 3 boards. One Board Stage Bracket enables an additional 255 mm platform to be provided on the inside of the scaffold. Two and Three Board Brackets enable an additional 450 mm and 675mm platform respectively to be provided on the edifice side of the scaffold structure. Tie Bars must be used to connect the brackets together

For 1 Board
2 Board
3 Board

Weight (Kg) 2.4
5.7
9.3

Toe Board Bracket

End Toe Board Bracket

Toe Board Bracket clamps on to the standard with a captive wedge. It holds 1 or 2 toe board vertically in position

Weight - 0.8 Kg

End Toe Board Bracket fits into 'V' pressing of the standard at the end of a platform. It holds the end toe board vertically in position

Weight - 1.2 Kg
